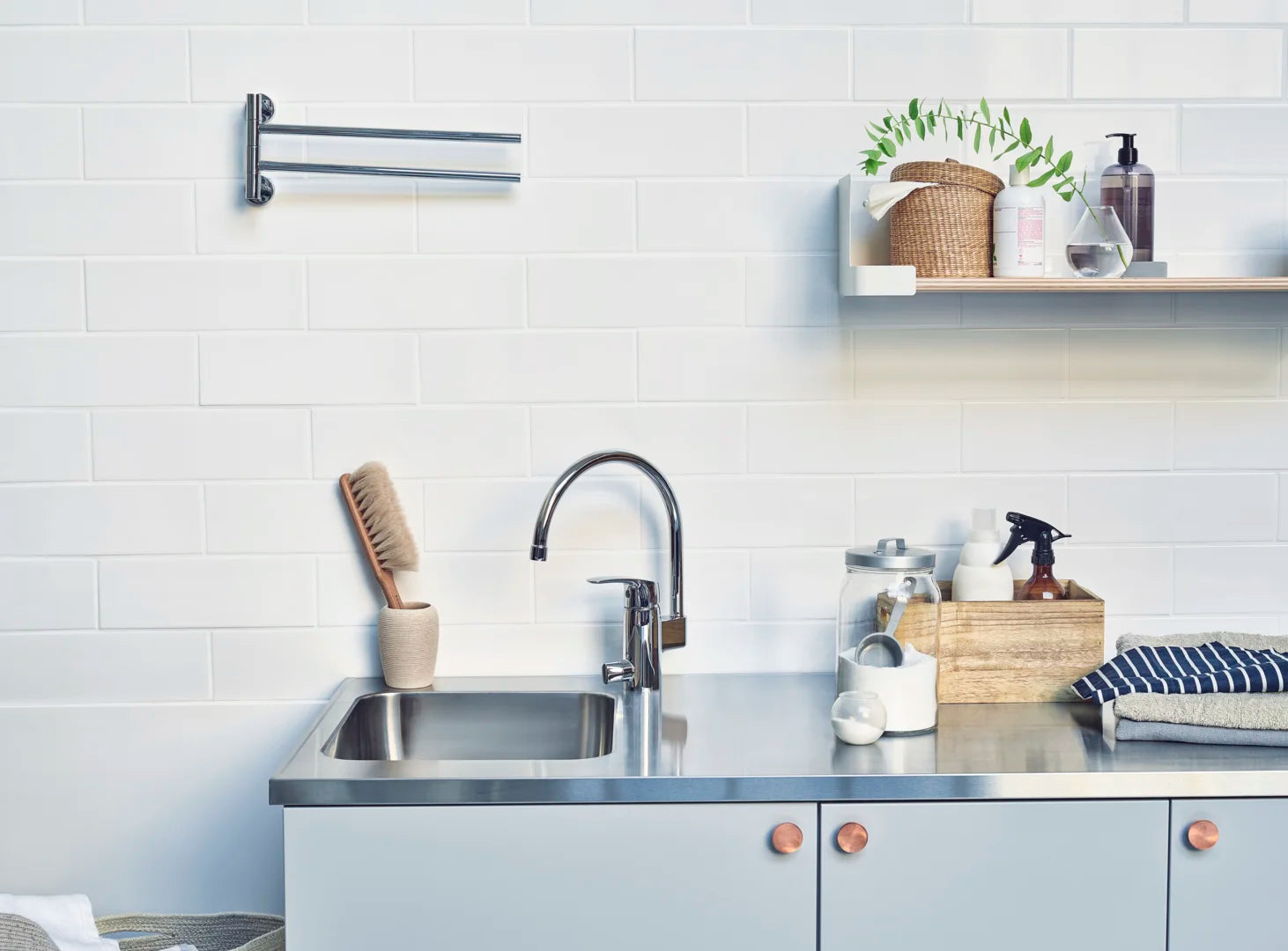

Oras Safira
1039F | Kitchen faucet with dishwasher valve
NRF: 4200416
| EAN: 6414150078958
Kitchen faucet with high spout and dishwasher valve with ceramic valve 90° rotation for ON/OFF. Spout’s swing angle is factory preset at 120° (can be limited to 0° or 60°). There are also in-bu...
Les mer
Reservedeler for Kitchen faucet with dishwasher valve
| # | Parts | Product number |
|---|---|---|
| 1 |
232201 | Strålesamler, M22x1 HC B | Krom |
232201 |
| 2 |
159695V | Tut komplett | Krom |
159695V |
| 3 | 159667/10 | |
| 4 |
159499 | O-ring sett | |
159499 |
| 5 |
602502V | Hendel | Krom |
602502V |
| 6 |
602589V | Dekkring | Krom |
602589V |
| 7 | 158726 | |
| 8 |
158890 | Kassett | |
158890 |
| 9 |
602600V | Keramisk overdel, G1/2 | |
602600V |
| 10 |
1005697V | Ratt for vaskemaskinkran | Krom |
1005697V |
| 11 |
1002371V | Underlagsskive | |
1002371V |
| 12 | 158825 | |
| 13 |
1000780V | Pinneskrue, M8x1, L=130 | |
1000780V |
| 14 |
602610V | Kranfeste komplett | |
602610V |
Kitchen faucet with high spout and dishwasher valve with ceramic valve 90° rotation for ON/OFF. Spout’s swing angle is factory preset at 120° (can be limited to 0° or 60°). There are also in-built limitation options for water temperature and maximum flow-rate. F = with flexible pipes
PDF
PDF
PDF
PDF
PDF
PDF
To access guides and documents, visit our product page at Oras.com
You will be able to find:
- Manuals
- Flow diagram
- SP image
- BIM object
- 3D image
| Features | |
|---|---|
Installation |
Deck mounted
|
Aerator |
Standard aerator
|
Connection |
Flexible inlet pipes
|
Mounting holes |
1 hole
|
Lever/Handle |
Single operating lever/handle and Hot/Cold symbols
|
Dishwasher valve |
Mechanic stop valve for external equipment
|
Spout |
Swivel spout and Swivel range limiting option
|
Temperature |
Limitation option for maximum temperature and flow-rate
|
Mechanical parts |
ø 40 mm ceramic cartridge for flow and temperature control
|
Advanced features |
3S-installation system for safe and simple mounting
|
| Flow attributes | |
Flow-rate at 300 kPa |
|
Pressure loss with flow 0.2 l/s |
|
| Technical properties | |
Hot Water Supply |
|
Working Pressure |
|
Connection Size |
|
Projection |
|
Spout Swivel Range |
|
Backflow prevention (EN1717) |
|
Material |
|
| Regulations | |
EN Standard |
|
Noise class |
|
| Sustainability | |
A1 (kg CO2 eq) |
|
A2 (kg CO2 eq) |
|
A3 (kg CO2 eq) |
|
A1-A3 (kg CO2 eq) |
|
A4 (kg CO2 eq) |
|
B7 (kg CO2 eq) |
|
C2 (kg CO2 eq) |
|
C3 (kg CO2 eq) |
|
C4 (kg CO2 eq) |
|
D (kg CO2 eq) |
|
