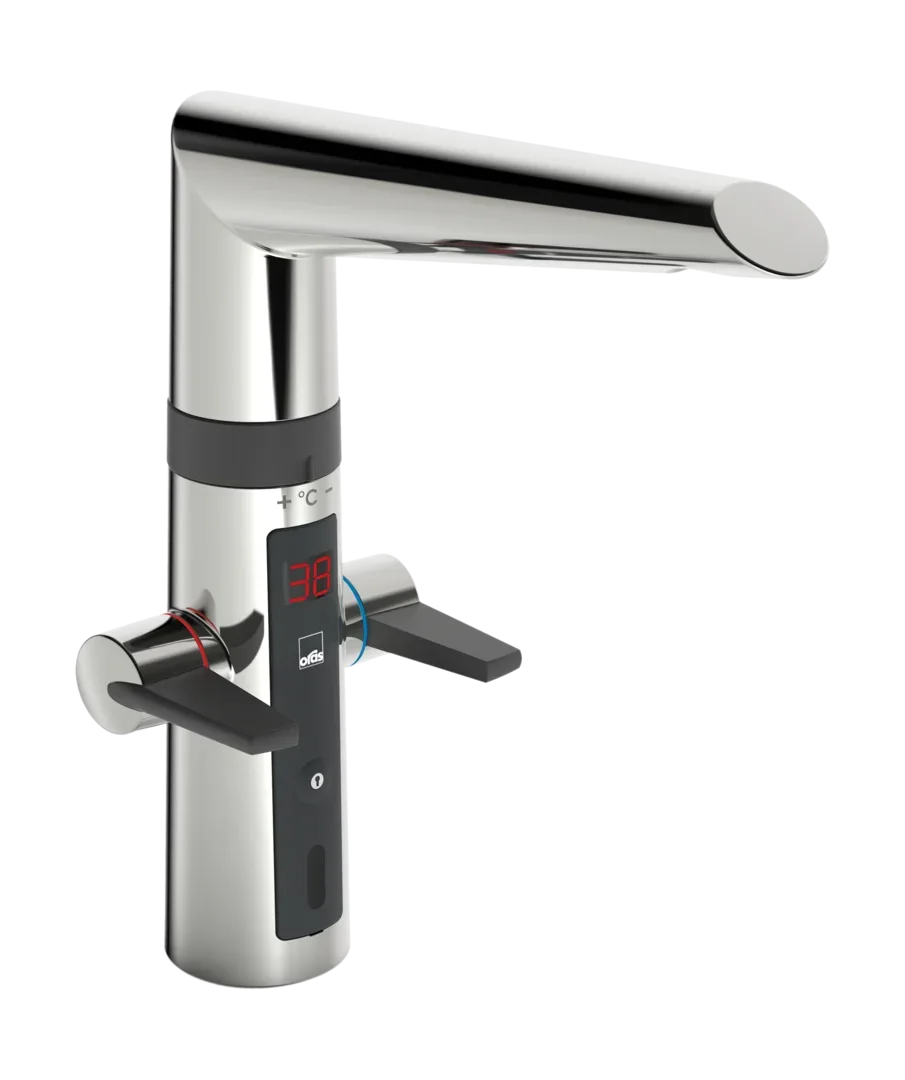

Oras Optima
2722F | Kitchen faucet, 230/5 V
NRF: 4200375
| EAN: 6414150070051
Kitchen faucet with easy-grip levers for hot and cold water, touchless function, temperature display with hot water warning, high swivel spout and aerator. The flow-rate of hot and cold water is ad...
Les mer
Reservedeler for Kitchen faucet, 230/5 V
| # | Parts | Product number |
|---|---|---|
| 1 | 199257/2 | |
| 2 | 601472V | |
| 3 |
601224V | Kontrollpanel | |
601224V |
| 4 |
601094/2 | Hendel | |
601094/2 |
| 5 | 601092V | |
| 6 | 601091V | |
| 7 |
601287V | Strålesamler og verktøy, M24x1 STD CC S | |
601287V |
| 8 |
601072V | O-ring sett | |
601072V |
| 9 |
601110V | Temperaturreguleringsdel | |
601110V |
| 10 |
601103V | Tut komplett | Krom |
601103V |

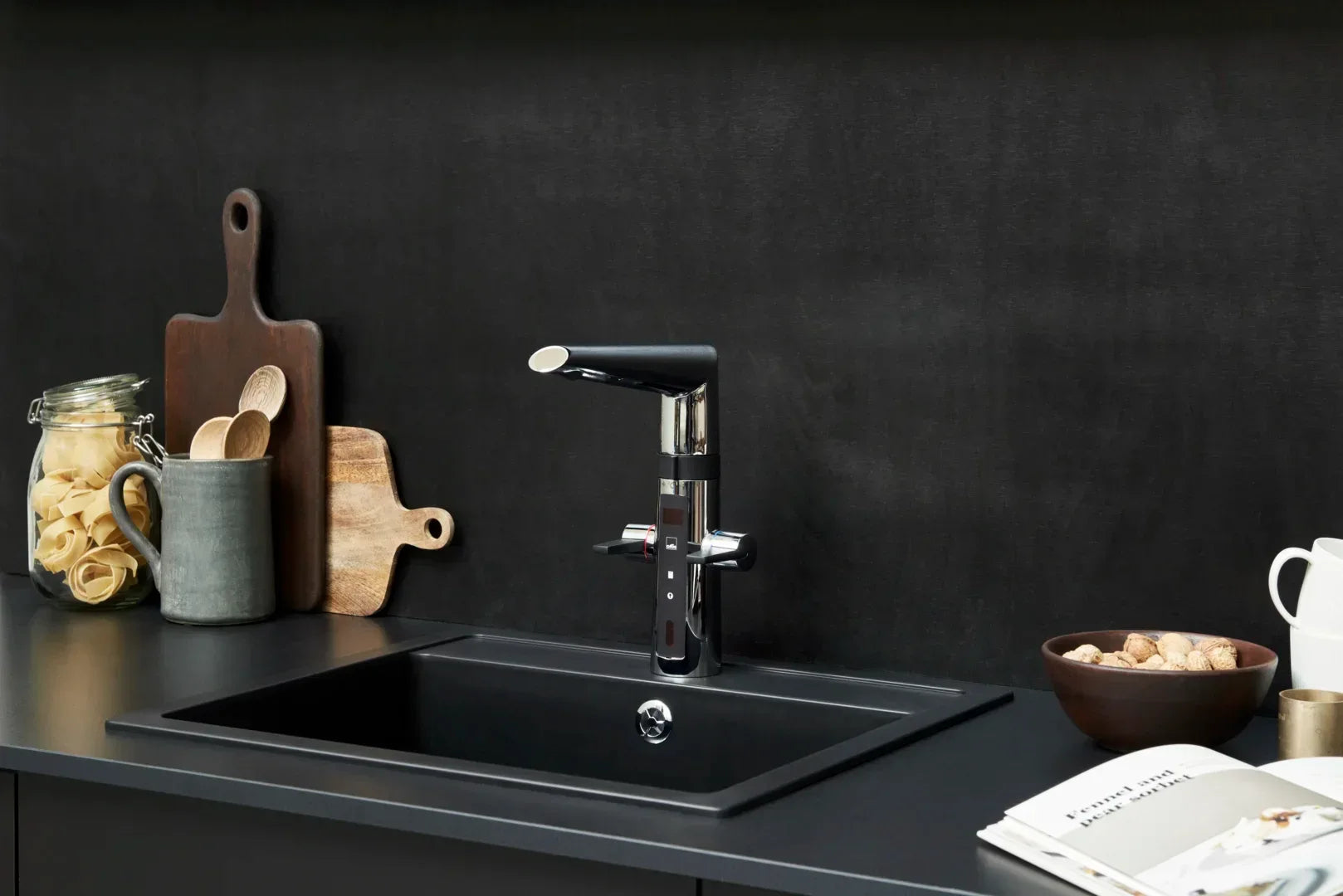

Kitchen faucet with easy-grip levers for hot and cold water, touchless function, temperature display with hot water warning, high swivel spout and aerator. The flow-rate of hot and cold water is adjusted by separate levers. Spout’s swing angle is factory preset at 120° (can be limited to 60° or 80°). The touchless function is turned on by taking hands within the recognition range. The water temperature for the touchless function is adjusted by turning the ring between the faucet and the spout. Touchless function can be easily switched on/off. Electrical connection with a plug transformer 230/5 V. The faucet is equipped with litter filters.
F = with flexible pipes.
F = with flexible pipes.
PDF
PDF
PDF
PDF
PDF
PDF
PDF
To access guides and documents, visit our product page at Oras.com
You will be able to find:
- Manuals
- Flow diagram
- SP image
- BIM object
- 3D image
| Features | |
|---|---|
Installation |
Deck mounted
|
Aerator |
Standard aerator
|
Connection |
Flexible inlet pipes
|
Mounting holes |
1 hole
|
Lever/Handle |
Two operating levers/handles and Easy-Grip surface
|
Spout |
Swivel spout and Swivel range limiting option
|
Mechanical parts |
Ceramic head part for flow control, Mixing valve for manual temperature control, and Litter filter(s)
|
Electronic parts |
Autofocus infrared sensor, Solenoid valve, Power supply, and Light indicated function(s)
|
Advanced features |
Inner body made of DZR brass, Surfaces in contact with drinking water contain less than 0.3% lead, and Waterways without nickel coating
|
| Software settings | |
Afterflow period |
|
Automatic flush Frequency |
|
Automatic flush period |
|
Max.flow period |
|
Operating Distance |
|
| Flow attributes | |
Flow-rate at 300 kPa |
|
Pressure loss with flow 0.2 l/s |
|
| Technical properties | |
Hot Water Supply |
|
Working Pressure |
|
Connection Size |
|
Projection |
|
Spout Swivel Range |
|
Backflow prevention (EN1717) |
|
Material |
|
| Electronics | |
Operating Voltage |
|
Electrical connection |
|
Protection class |
|
| Regulations | |
EMC Directive |
|
EN Standard |
|
Noise class |
|
| Sustainability | |
A1 (kg CO2 eq) |
|
A2 (kg CO2 eq) |
|
A3 (kg CO2 eq) |
|
A1-A3 (kg CO2 eq) |
|
A4 (kg CO2 eq) |
|
B7 (kg CO2 eq) |
|
C2 (kg CO2 eq) |
|
C3 (kg CO2 eq) |
|
C4 (kg CO2 eq) |
|
D (kg CO2 eq) |
|
