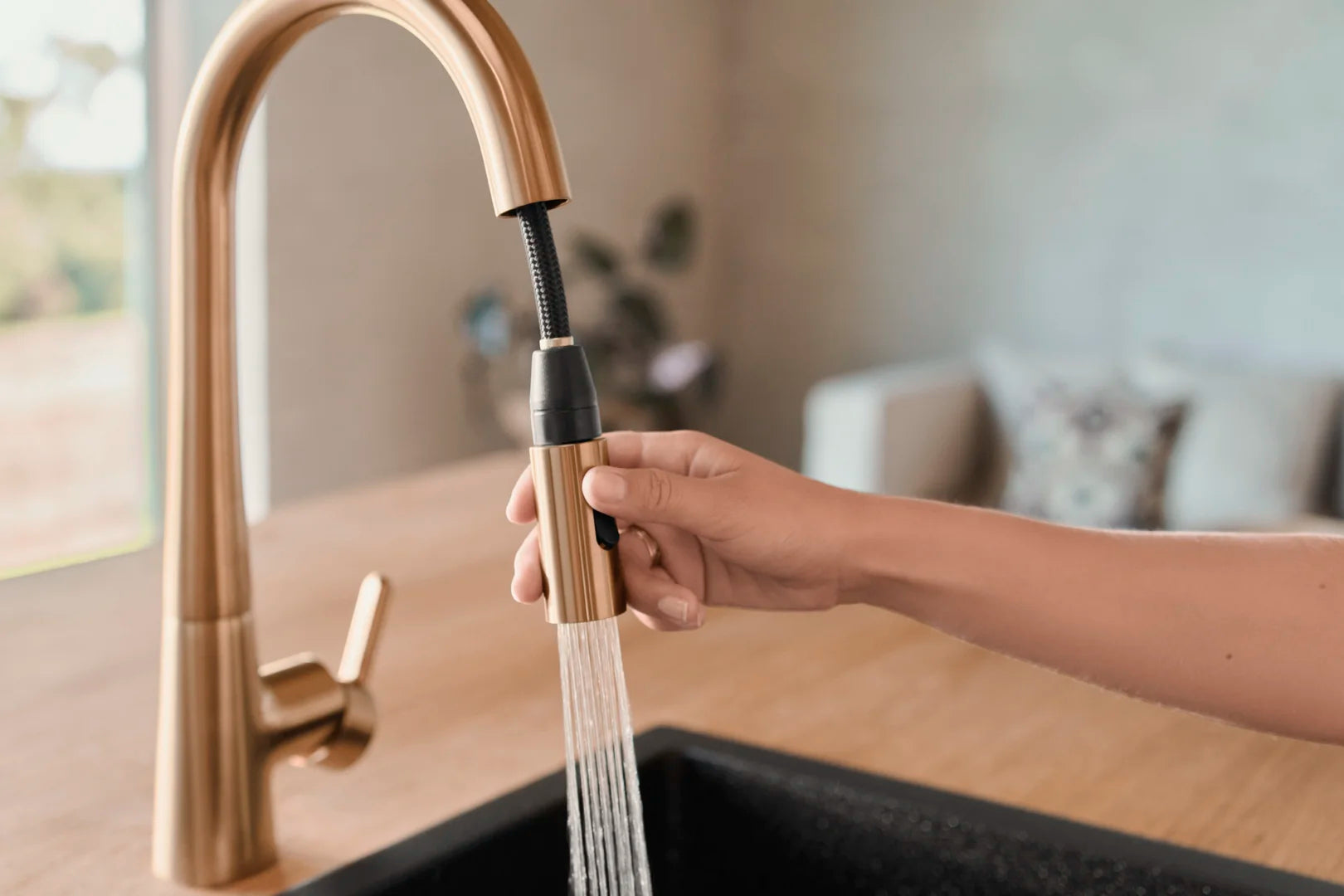

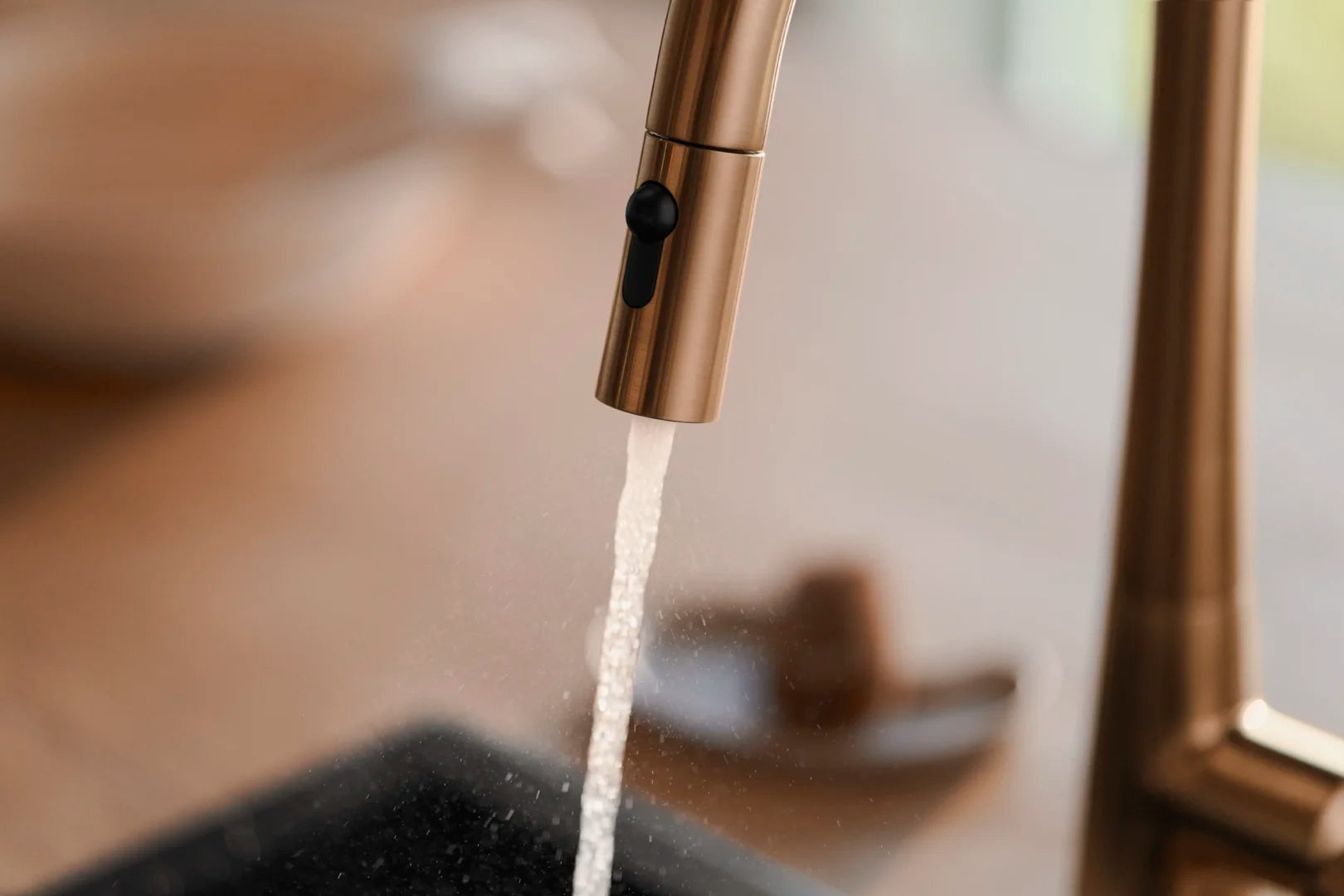

Oras Inspera
3031F-81 | Kitchen faucet with dishwasher valve, 3 V
NRF: 4200476
| EAN: 6414150103094
Kitchen faucet with smart dishwasher valve and with pull-out spout. Swivel spout with pull-out spout/spray and aerator. Spout’s pull-out length can be fixed. Spout’s swing angle is factory preset ...
Les mer
Reservedeler for Kitchen faucet with dishwasher valve, 3 V
| # | Parts | Product number |
|---|---|---|
| 1 |
1000972V | Strålesamler | |
1000972V |
| 2 |
1004704V | Slange, L=1500, G1/2-M14x1 | |
1004704V |
| 3 | 602706/2 | |
| 4 |
1003691V | Kassett | |
1003691V |
| 5 | 158726 | |
| 6 | 158825 | |
| 7 |
602629V | Kranfeste komplett | |
602629V |
| 8 |
601884V-F | Pilotventil, 3 V | |
601884V-F |
| 9 | 1006500V | |
| 10 | 438025/10 | |
| 11 | 199257/2 | |
| 12 |
600599V | Batteri, (2x) 1.5 V AA Lithium | |
600599V |
| 13 |
1005266V | Kontrollkomponent, 3 V, Bluetooth | |
1005266V |
Kitchen faucet with smart dishwasher valve and with pull-out spout. Swivel spout with pull-out spout/spray and aerator. Spout’s pull-out length can be fixed. Spout’s swing angle is factory preset at 150° (can be limited to 60° / 0°). Dishwasher valve closes automatically after 4 or 12 hours (one push opens the valve for 4 hours, pushing for 5 seconds opens the valve for 12 hours). Battery operated, 3 V. There are also in-built limitation options for water temperature and maximum flow-rate.
F = with flexible pipes
F = with flexible pipes
PDF
PDF
PDF
PDF
PDF
PDF
To access guides and documents, visit our product page at Oras.com
You will be able to find:
- Manuals
- Flow diagram
- SP image
- BIM object
- 3D image
| Features | |
|---|---|
Installation |
Deck mounted
|
Connection |
Flexible inlet pipes
|
Mounting holes |
1 hole
|
Lever/Handle |
Single operating lever/handle and Hot/Cold symbols
|
Dishwasher valve |
Electronic stop valve for external equipment
|
Spout |
Swivel spout, Pull-out model, and Swivel range limiting option
|
Number of shower sprays |
2 spray functions
|
Temperature |
Limitation option for maximum temperature and flow-rate
|
Mechanical parts |
ø 40 mm ceramic cartridge for flow and temperature control and Litter filter(s)
|
Electronic parts |
Solenoid valve, External control unit, Light indicated function(s), and Low battery indicator
|
| Software settings | |
DishWasher valve open period |
|
| Flow attributes | |
Flow-rate at 300 kPa |
|
Pressure loss with flow 0.2 l/s |
|
| Technical properties | |
Hot Water Supply |
|
Working Pressure |
|
Connection Size |
|
Projection |
|
Spout Swivel Range |
|
Material |
|
| Electronics | |
Operating Voltage |
|
Battery |
|
Protection class |
|
Bluetooth Version |
|
| Regulations | |
EMC Directive |
|
EN Standard |
|
Noise class |
|
| Approvals and Declarations | |
KIWA SE Type Approval |
|
| Sustainability | |
A1 (kg CO2 eq) |
|
A2 (kg CO2 eq) |
|
A3 (kg CO2 eq) |
|
A1-A3 (kg CO2 eq) |
|
A4 (kg CO2 eq) |
|
B7 (kg CO2 eq) |
|
C2 (kg CO2 eq) |
|
C3 (kg CO2 eq) |
|
C4 (kg CO2 eq) |
|
D (kg CO2 eq) |
|
