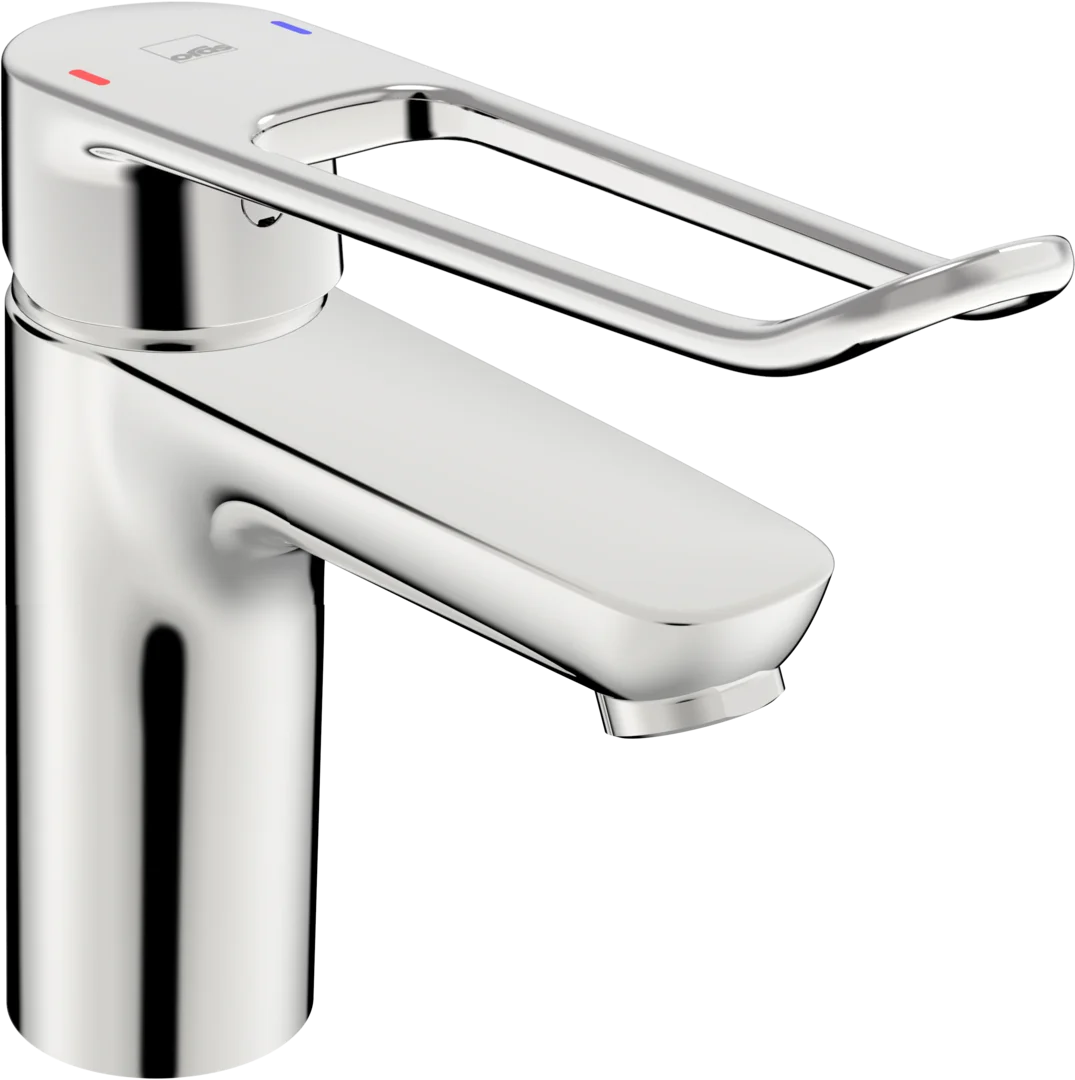

Oras Clinica
5611B | Washbasin faucet
NRF: 4200595
| EAN: 6414150100628
Oras Clinica washbasin faucet. Firm longer loop-lever (180 mm) offers good usability to all users and situations. Fixed spout with nickel-free water channels and laminar water flow. In-built limita...
Les mer
Reservedeler for Washbasin faucet
| # | Parts | Product number |
|---|---|---|
| 1 |
201180 | Hjelpehendel, L=180 | Krom |
201180 |
| 2 |
1000664V | Dekkring | Krom |
1000664V |
| 3 | 158726 | |
| 4 |
158890 | Kassett | |
158890 |
| 5 |
602283V | Strålesamler, M24x1 STD PL HC A Laminar | Krom |
602283V |
| 6 |
1002371V | Underlagsskive | |
1002371V |
| 7 |
1000780V | Pinneskrue, M8x1, L=130 | |
1000780V |
| 8 |
602610V | Kranfeste komplett | |
602610V |
Oras Clinica washbasin faucet. Firm longer loop-lever (180 mm) offers good usability to all users and situations. Fixed spout with nickel-free water channels and laminar water flow. In-built limitation options for water temperature and maximum flow-rate. Connection pipes Cu ø10 mm.
PDF
PDF
PDF
PDF
PDF
To access guides and documents, visit our product page at Oras.com
You will be able to find:
- Manuals
- Flow diagram
- SP image
- BIM object
- 3D image
| Features | |
|---|---|
Installation |
Deck mounted
|
Aerator |
Laminar stream
|
Connection |
Copper inlet pipes
|
Mounting holes |
1 hole
|
Lever/Handle |
Single operating lever/handle, Loop shape, and Hot/Cold symbols
|
Spout |
Fixed spout
|
Temperature |
Limitation option for maximum temperature and flow-rate
|
Mechanical parts |
ø 40 mm ceramic cartridge for flow and temperature control
|
Advanced features |
Inner body made of DZR brass, Waterways without nickel coating, and 3S-installation system for safe and simple mounting
|
| Flow attributes | |
Flow-rate at 300 kPa |
|
Pressure loss with flow 0.1 l/s |
|
| Technical properties | |
Hot Water Supply |
|
Working Pressure |
|
Connection Size |
|
Projection |
|
Backflow prevention (EN1717) |
|
Material |
|
Length |
|
DN-size (nominal dimension) |
|
| Regulations | |
EN Standard |
|
Noise class |
|
| Sustainability | |
A1 (kg CO2 eq) |
|
A2 (kg CO2 eq) |
|
A3 (kg CO2 eq) |
|
A1-A3 (kg CO2 eq) |
|
A4 (kg CO2 eq) |
|
B7 (kg CO2 eq) |
|
C2 (kg CO2 eq) |
|
C3 (kg CO2 eq) |
|
C4 (kg CO2 eq) |
|
D (kg CO2 eq) |
|
