Oras Clinica

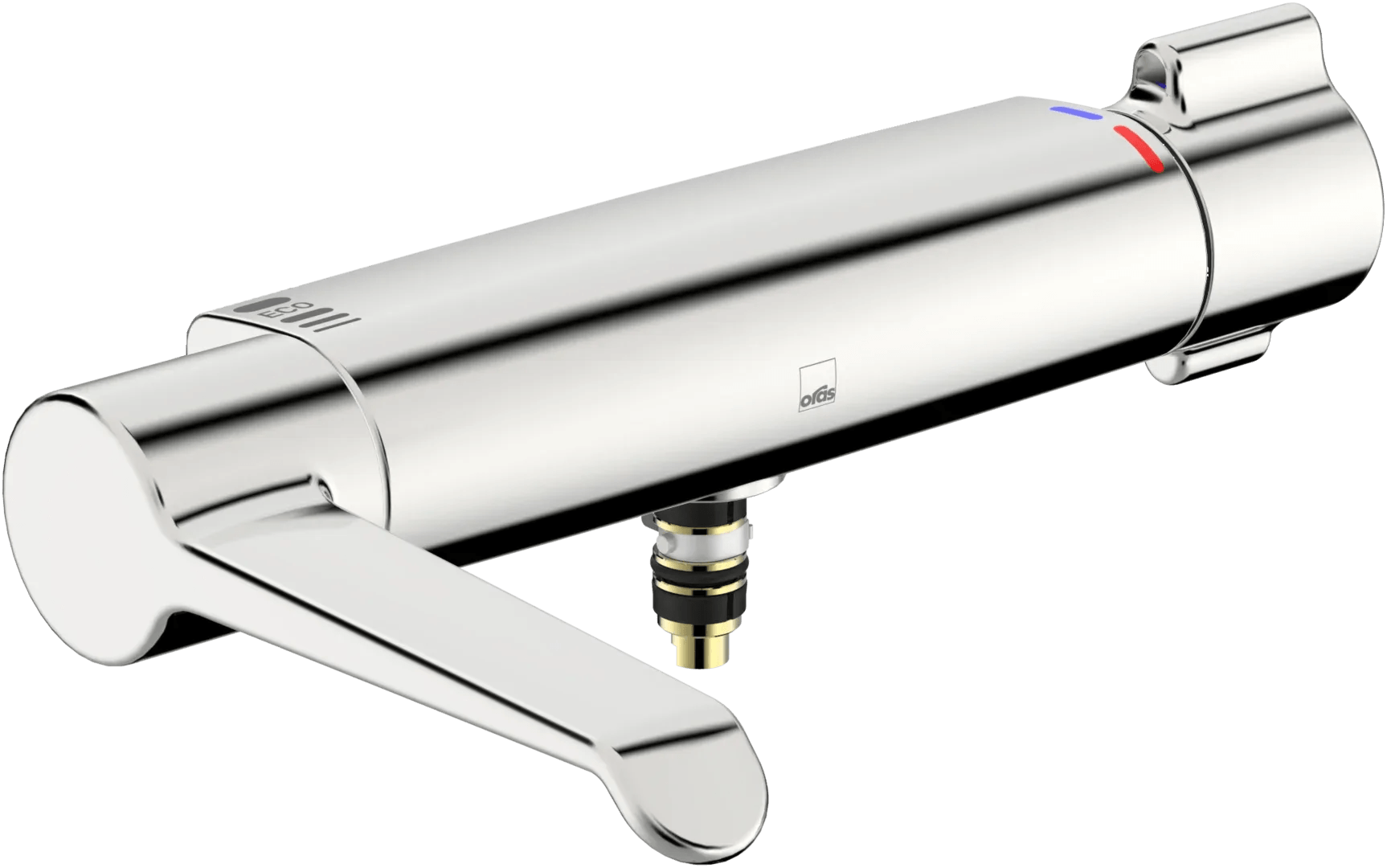

5667 | Washbasin faucet
NRF: 4202597
| EAN: 6414150098567
Thermostatic wall-mounted washbasin faucet with long ergonomic flow handles. Temperature handle equipped with safety lock. Volume handle with EcoFlow control. The faucet is equipped with thermal d...
Les mer
Reservedeler for Washbasin faucet
| # | Parts | Product number |
|---|---|---|
| 1 |
1004311V | Mengderatt , L=150 mm | Krom |
1004311V |
| 2 |
109898 | Keramisk overdel | |
109898 |
| 3 | 602438/2 | |
| 4 |
178375V | Smussfilter, G3/4, DN20 | |
178375V |
| 5 | 1006473V | |
| 6 |
178780V | Termostatstyrt reguleringskassett | |
178780V |
| 7 |
1006058V | Temperaturreguleringsgrep | Krom |
1006058V |
| 8 |
602707V | Tetningsringer for tut | |
602707V |
| 9 |
602499V | Sperrehylse, 120° | |
602499V |
| 10 |
159667V | Begrenser for svingbar tut, 60°/0° | |
159667V |
| 11 |
290017 | Tut komplett, L=200 | Krom |
290017 |
| 12 |
1003610V | Strålesamler, M22x1 STD PL HC A Laminar | Krom |
1003610V |
Thermostatic wall-mounted washbasin faucet with long ergonomic flow handles. Temperature handle equipped with safety lock. Volume handle with EcoFlow control. The faucet is equipped with thermal disinfection. The faucet includes litter filters and non-return valves.
PDF
PDF
PDF
PDF
PDF
To access guides and documents, visit our product page at Oras.com
You will be able to find:
- Manuals
- Flow diagram
- SP image
- BIM object
- 3D image
| Features | |
|---|---|
Installation |
Wall mounted
|
Connection |
Direct connection
|
Lever/Handle |
Temperature control handle, Flow control handle, Long shape, and Eco feature for water flow
|
Temperature |
The housing of the fittings conducts minimal heat
|
Mechanical parts |
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), and Litter filter(s)
|
Advanced features |
Inner body made of DZR brass, Waterways without nickel coating, and Thermal disinfection without cartridge readjustment
|
| Flow attributes | |
Flow-rate at 300 kPa |
|
| Technical properties | |
Hot Water Supply |
|
Working Pressure |
|
Connection Size |
|
Installation width |
|
Backflow prevention (EN1717) |
|
Material |
|
| Regulations | |
EN Standard |
|
Noise class |
|
| Sustainability | |
A1 (kg CO2 eq) |
|
A2 (kg CO2 eq) |
|
A3 (kg CO2 eq) |
|
A1-A3 (kg CO2 eq) |
|
A4 (kg CO2 eq) |
|
B7 (kg CO2 eq) |
|
C2 (kg CO2 eq) |
|
C3 (kg CO2 eq) |
|
C4 (kg CO2 eq) |
|
D (kg CO2 eq) |
|
