Washbasin faucet, 6 V, Bluetooth | 5676Z | Chrome

Oras Clinica

5676Z | Washbasin faucet, 6 V, Bluetooth

Name: Washbasin faucet, 6 V, Bluetooth
Brand: oras
SKU: 5676Z
Price: 11516.00 NOK
Availability: InStock

NRF: 4202599 | EAN: 6414150098673

Dokumentasjon Tekniske data Reservedeler

Logg inn for å handle

Retail price incl. VAT 14.395,00 kr

Logg inn eller opprett en ny bruker for å handle

Out of stock - Expected delivery time 3 weeks

Reservedeler for Washbasin faucet, 6 V, Bluetooth

#	Parts	Product number
1	Battery casing 199438V \| Batteriboks komplett \|	199438V
2	Sensor holder	1006102V
3	Update kit	1017251V
4	Membrane for solenoid valve	1006500V
5	Combiner	602438/2
6	Filter sealing, G3/4, DN20 178375V \| Smussfilter, G3/4, DN20 \|	178375V
7	Cover flange	1006473V
8	Thermostatic cartridge 178780V \| Termostatstyrt reguleringskassett \|	178780V

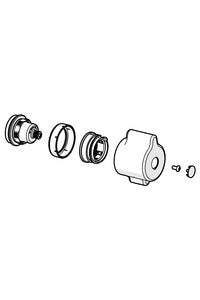

9	Temperature control handle 1006058V \| Temperaturreguleringsgrep \| Krom	1006058V

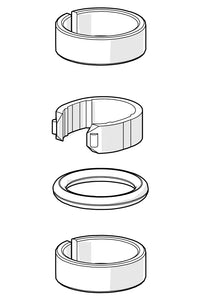

10	Sealing kit for spout 602707V \| Tetningsringer for tut \|	602707V
11	Spout overturning stopper, 60°/0° 159667V \| Begrenser for svingbar tut, 60°/0° \|	159667V

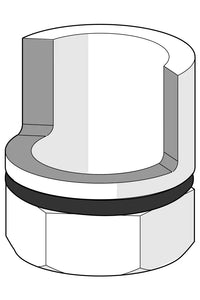

12	Limiter, 120° 602499V \| Sperrehylse, 120° \|	602499V
13	Spout, L=100 290016 \| Tut komplett, L=100 \| Krom	290016
14	Spout, L=200 290017 \| Tut komplett, L=200 \| Krom	290017

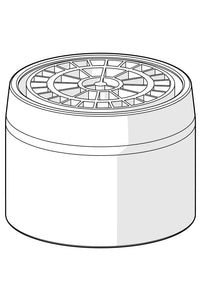

15	Aerator, M22x1 STD PL HC A Laminar 1003610V \| Strålesamler, M22x1 STD PL HC A Laminar \| Krom	1003610V

Technical Data

Guides

PDF

Unified Water Label

PDF

Materials Declaration

PDF

943499-11-23

PDF

EPD

PDF

Declaration of Conformity

PDF

UN38.3

PDF

945496-02-20

PDF

WEEE

PDF

REACH

PDF

FDV

PDF

Datasheet

Additional information

To access guides and documents, visit our product page at Oras.com

You will be able to find:

Manuals
Flow diagram
SP image
BIM object
3D image

Features
Installation	Wall mounted
Connection	Direct connection
Lever/Handle	Temperature control handle
Temperature	The housing of the fittings conducts minimal heat
Mechanical parts	Thermostatic cartridge for automatic temperature control, Non-return valve(s), and Litter filter(s)
Electronic parts	Autofocus infrared sensor, Solenoid valve, and Low battery indicator
Advanced features	Inner body made of DZR brass, Waterways without nickel coating, Thermal disinfection without cartridge readjustment, and Software settings adjustable via App
Software settings
Afterflow period	2 s (1-20 s)
Automatic flush Frequency	off (off/1-120 h)
Automatic flush period	30 s (1-1800 s)
Max.flow period	2 min (1 - 1800 s)
Operating Distance	20-400 mm (150/400/500 mm)
Flow attributes
Flow-rate at 300 kPa	0.16 l/s
Technical properties
Hot Water Supply	max. +70°C
Working Pressure	100 - 1000 kPa
Connection Size	G3/4
Installation width	150 ± 3 mm
Backflow prevention (EN1717)	AA
Material	Brass
Electronics
Operating Voltage	6 V
Battery	Lithium 2CR5 6 V
Protection class	IP 55
Bluetooth Version	4.x (D034445)
Regulations
EMC Directive	Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN Standard	EN 1111 , EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2, EN 18031-1, EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class	I (ISO 3822)
Sustainability
A1 (kg CO2 eq)	11,89
A2 (kg CO2 eq)	0,06
A3 (kg CO2 eq)	0,62
A1-A3 (kg CO2 eq)	13,12
A4 (kg CO2 eq)	0,53
B7 (kg CO2 eq)	688,00
C2 (kg CO2 eq)	0,03
C3 (kg CO2 eq)	0,03
C4 (kg CO2 eq)	0,35
D (kg CO2 eq)	-9,50
